RBAC Matrix

iFlow's access control has two independent axes that combine into an effective permission:

  1. Org role — who manages the organization (users, projects, credentials).
  2. Project role — who can read and modify entity data (samples, subjects, orders, analyses, files) inside a project.

Order-specific access adds a third axis for clinical workflow:

  1. Order access — for a given order stage, the assignee typically has edit access; everyone else is read-only.

You see the same three matrices in iFlow itself under Settings → Organization → Roles. This page is a copy of that UI, plus context you can't see on screen.

Org Roles

Organization roles control org-level management. Each user has one org role per organization. Higher roles include all lower-role permissions.

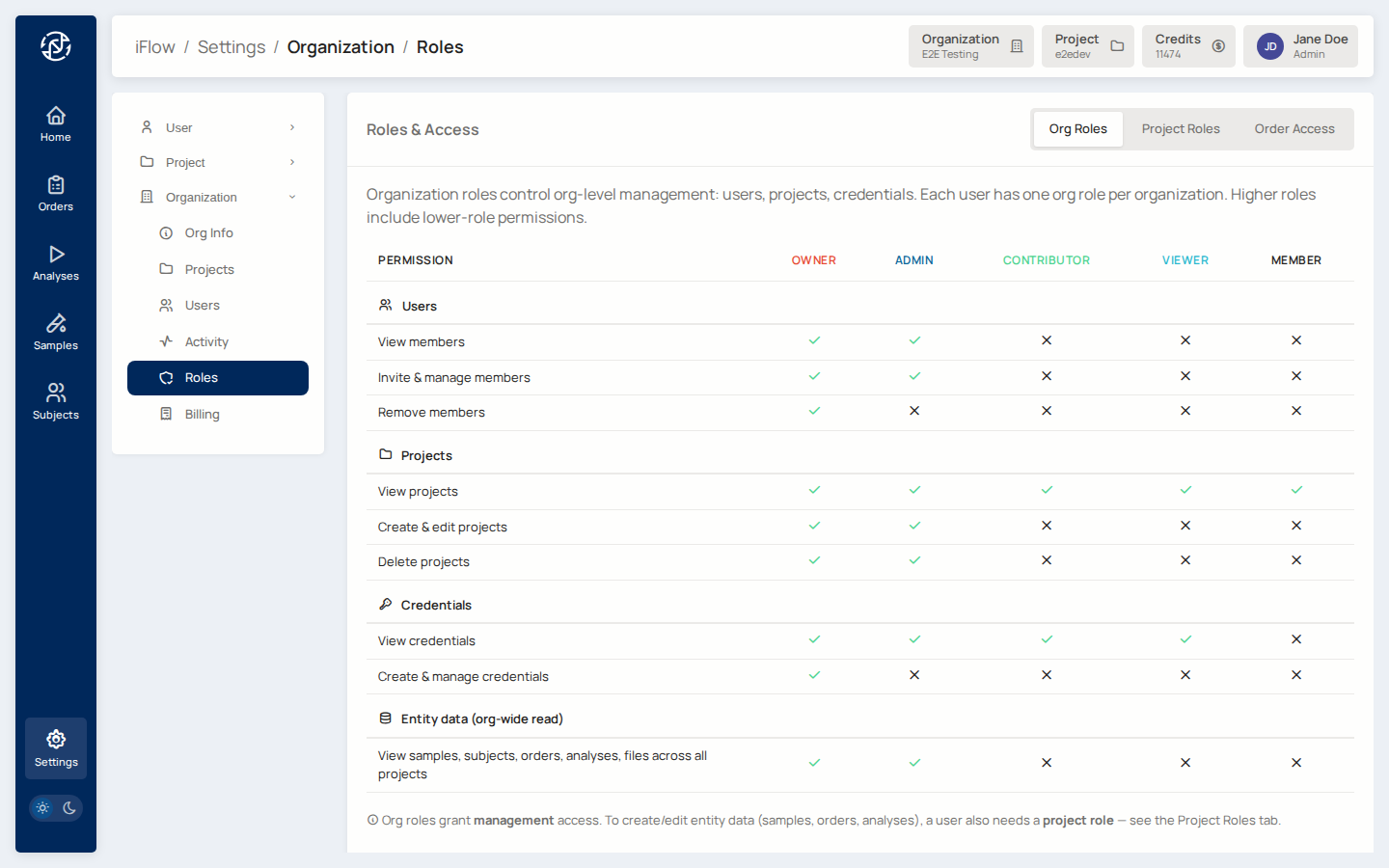

Org roles matrix

Org roles grant management access only

To create or edit entity data (samples, orders, analyses), a user also needs a project role. An org Admin with no project role cannot add a sample to a project — they can only manage membership.

Project Roles

Project roles control entity-data access within a single project. A user can have a different role in each project they belong to.

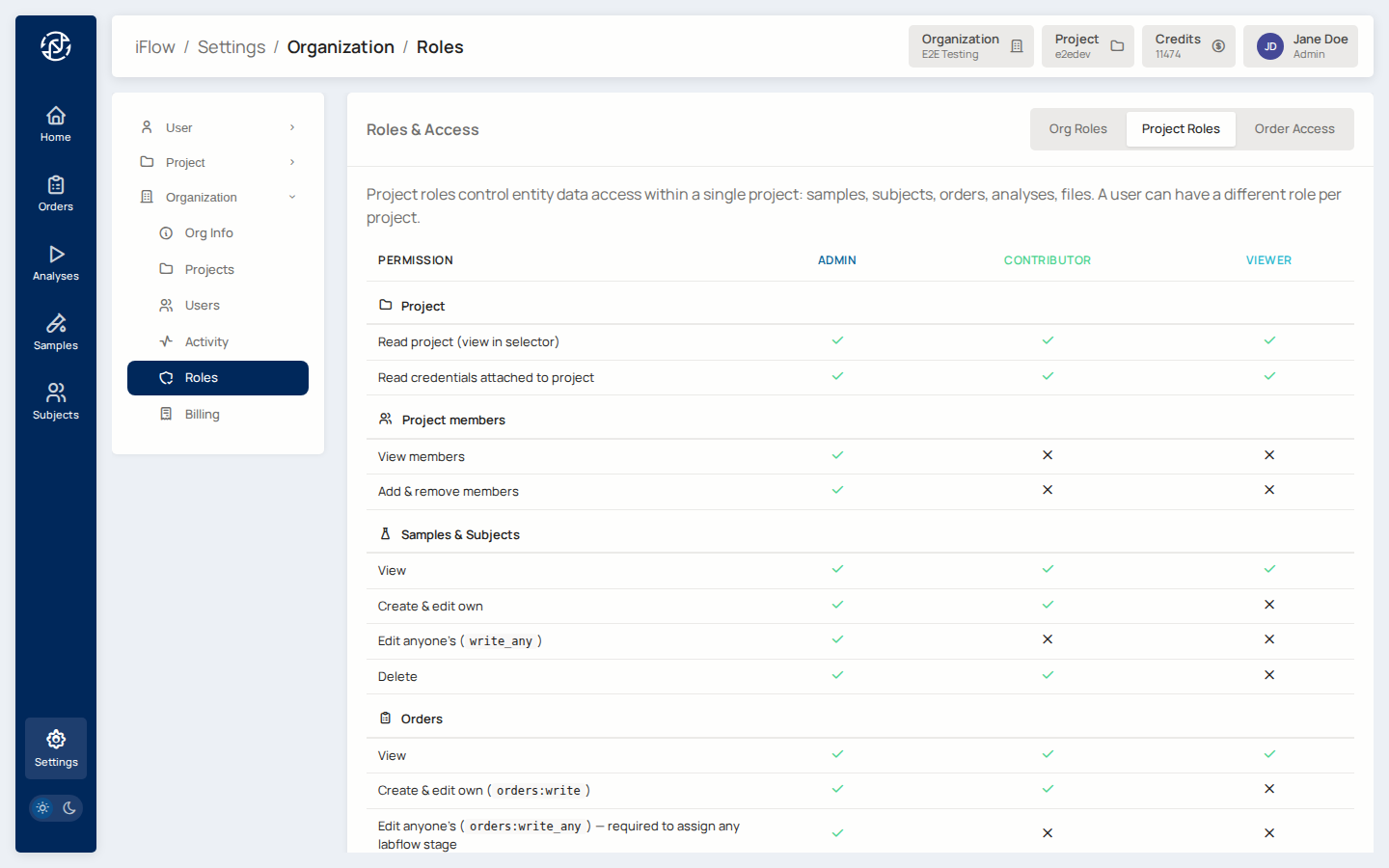

Project roles matrix

Permission codes referenced in this matrix:

Code Meaning
orders:write Create and edit orders where the user is the stage assignee
orders:write_any Edit any order regardless of assignment (required to assign other users to labflow stages)
write_any (on Samples / Subjects) Edit entities created by anyone else

Typical permission error

"I can see the order but I can't edit the variant." Check two things: (1) are you assigned to the current labflow stage? and (2) does the stage's flag allow editing? (See Order Access below.)

Order Access (labflow stages)

An order runs through five stages: Creation → Analysis → Review → Sign Off → Completion. Each stage has an internal state — pending, in progress, or completed. Effective access is the intersection of:

  • the stage's access flags (whether variant browser / report are editable at all at this stage),
  • the current stage state (most editing happens only in in progress),
  • whether you are the assignee of the stage or not.

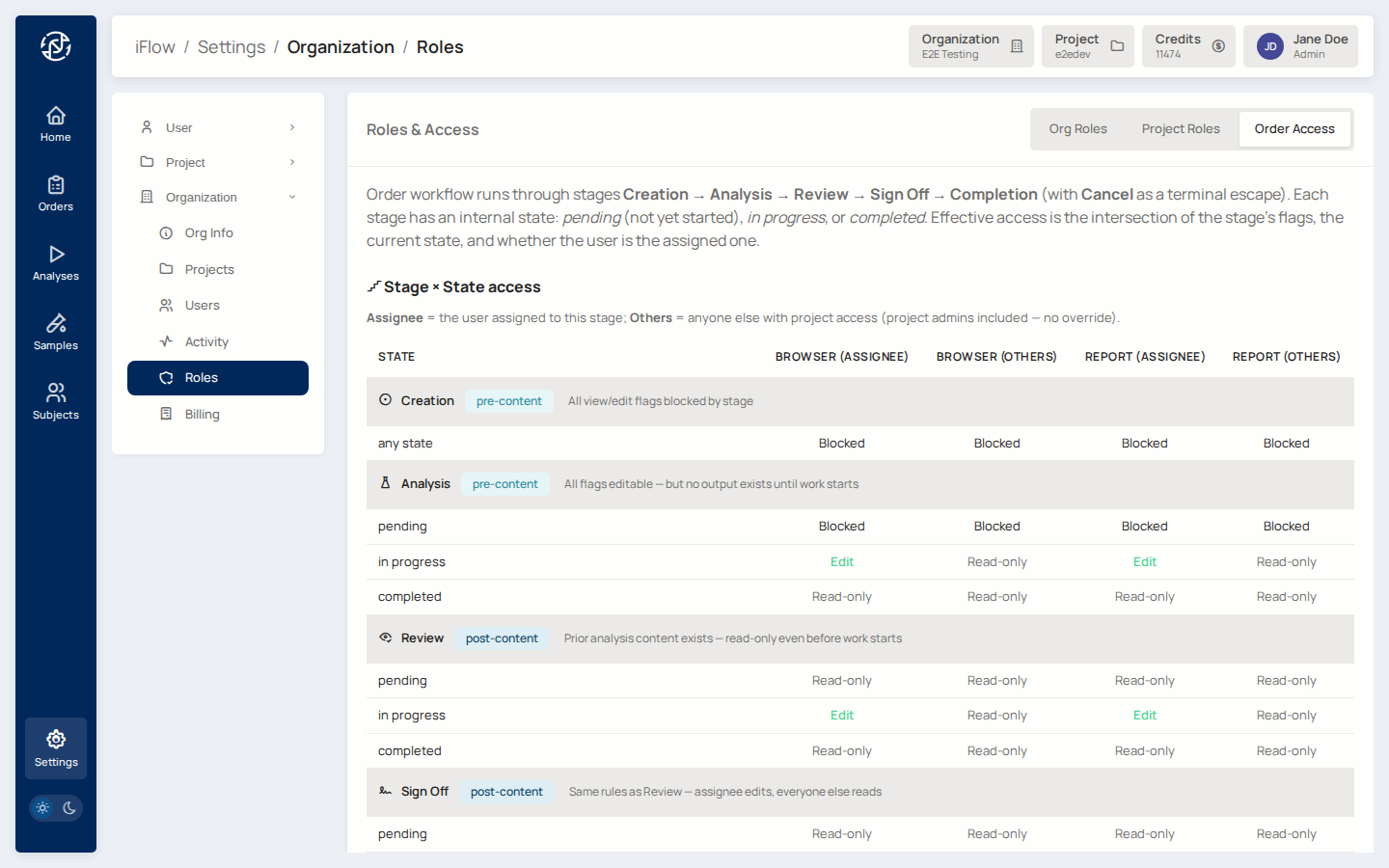

Order access matrix

The stage tags have the following meaning:

  • pre-content — the analysis hasn't produced output yet, so there is nothing for anyone to view.
  • post-content — analysis output exists; other users can read it even before work starts on the current stage.

Assignee vs Others

  • Assignee is the single user currently owning the stage.
  • Others is everyone else with project access. Project admins fall into "Others" unless they self-assign — there is no admin-override that grants editing without taking assignment.

How the three axes combine

The effective permission for an action is the intersection of all three axes. For example, to edit a variant on an order that is in Review: in progress:

  1. The user needs a project role that grants orders:write on Samples & Subjects / Orders (Contributor or Admin).
  2. The current stage (Review) must allow browser editing — it does.
  3. The user must be the assignee of the Review stage.

If any one of the three is missing, the edit is blocked.

Role hierarchy at a glance

Highest → lowest. A user granted a higher role inherits everything below.

Axis Order
Org Owner > Admin > Contributor > Viewer > Member
Project Admin > Contributor > Viewer

Superadmin is a platform-level role granted outside these two axes — used for Intelliseq operators, not for laboratory users. See Intended Use for the responsibilities split.

Terminal guarantees

  • order.status = completed and report.status = signed are terminal for editing through the normal UI. Modifying a completed order's report requires an amendment, which creates a new signed PDF.
  • signed_pdf_path is set once by Approve-and-Sign and never overwritten. Sign-off uploads the PDF via admin credentials, not the signing user's, so a clinical signatory without bucket-write access can still sign.
  • Every transition is appended to OrderStageTransitionHistory with the acting user ID and timestamp — the audit trail is immutable.
